Industry applications

Different industries, distinctive parts

Explore plastic part families by their role in a system, from structural carriers and flow paths to housings and fastening components.

AI-generated application illustrations show representative part geometries, not customer project photographs.

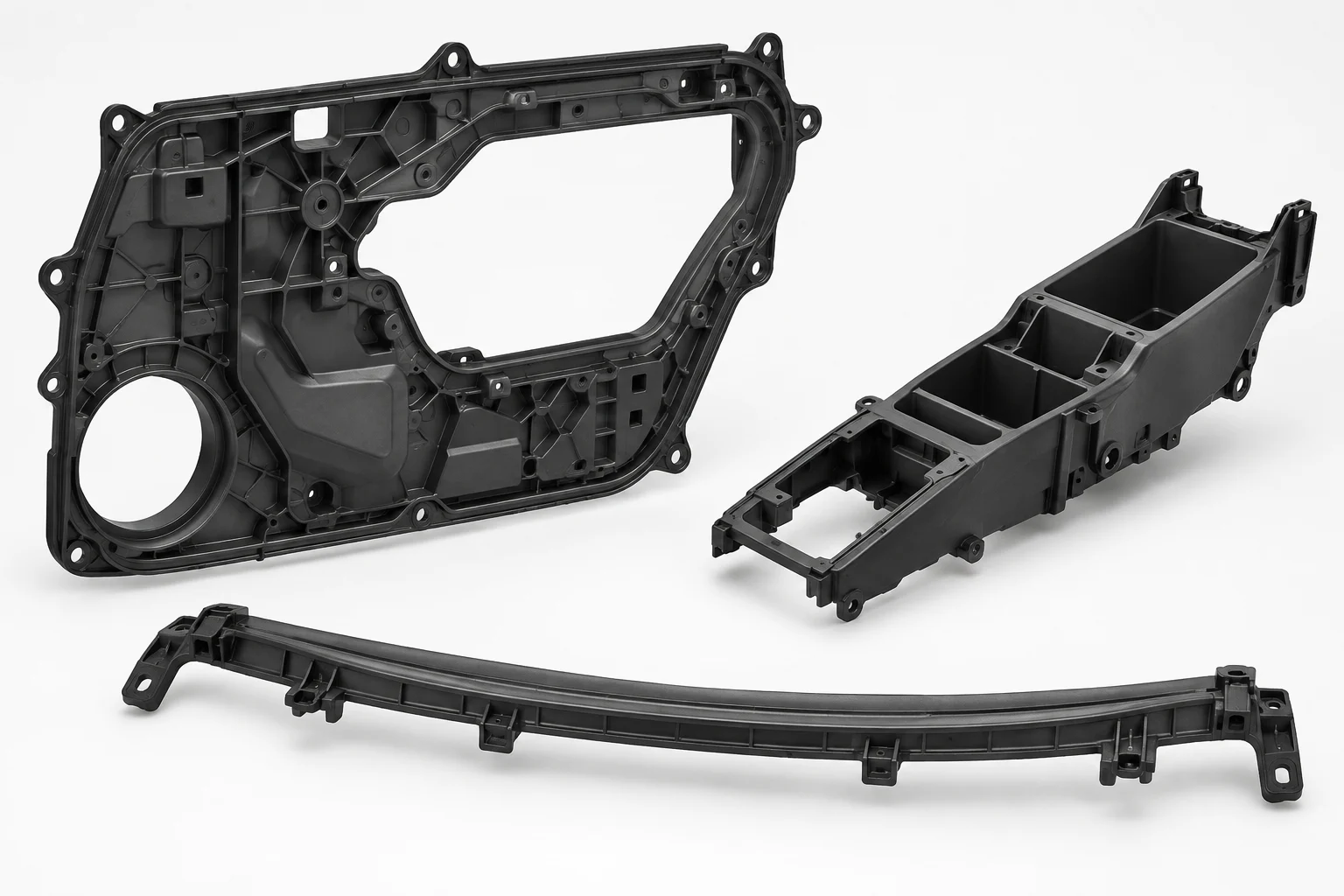

Illustrative group of a door inner carrier, center-console carrier and sunroof support with different mounting geometries
Door inner carrier · console carrier · sunroof support
01 / Automotive · Cabin & body

Automotive cabin & body parts

Door panels, console carriers and sunroof supports bring multiple mounting points into one part. The mating assembly defines the geometry.

Integrated mountingRibs & bossesAssembly fit

Engineering focus

  • Define locating points and mating surfaces before assigning tolerances.
  • Review rib transitions, draft and gate locations around the main attachment features.
  • Include assembly loads and visible-surface requirements in the part brief.
Discuss a similar application

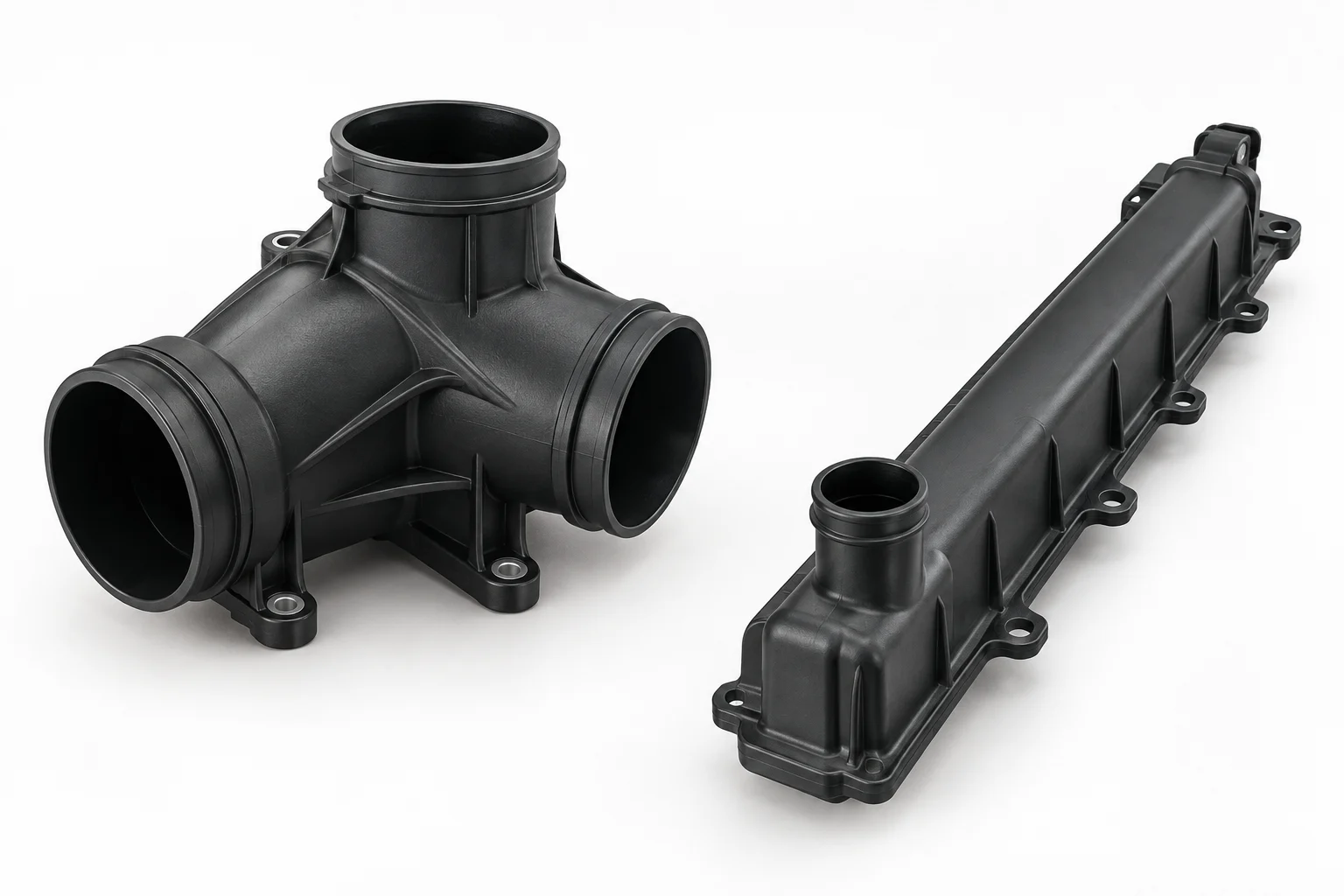

Illustrative air intake housing with open ports beside a long molded radiator end tank
Air intake housing · radiator end tank
02 / Automotive · Air & cooling

Automotive air & cooling parts

Branched housings and long tank bodies connect flow paths to the rest of the vehicle. Ports, joints and mounting points each have a different role.

Port geometryJoint interfacesThermal exposure

Engineering focus

  • Specify the operating temperature, fluid exposure and pressure conditions.
  • Identify sealing interfaces and the intended joining method.
  • Review material choice and validation requirements for the actual application.
Discuss a similar application

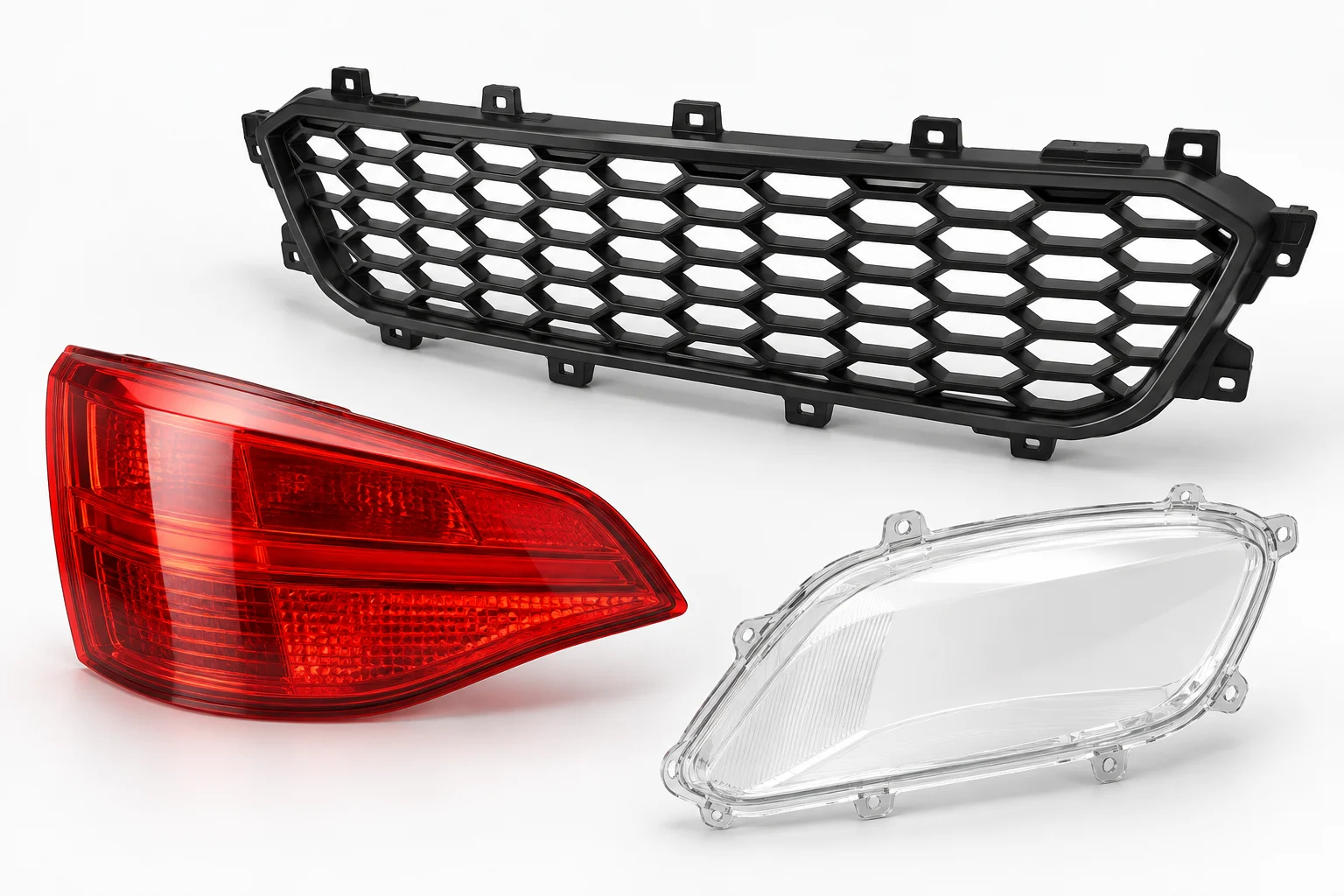

Illustrative red and clear lamp covers beside a black honeycomb exterior grille
Lamp covers · exterior grille
03 / Automotive · Lighting & exterior

Automotive lighting & exterior

Light-transmitting covers and open grille patterns make surface quality part of the product experience. Appearance and attachment need to work together.

Surface finishMounting tabsExposure conditions

Engineering focus

  • Identify visible surfaces, texture direction and appearance criteria.
  • Define the optical role where relevant; transparency alone is not an optical specification.
  • Consider weathering, coating and attachment requirements for the intended location.
Discuss a similar application

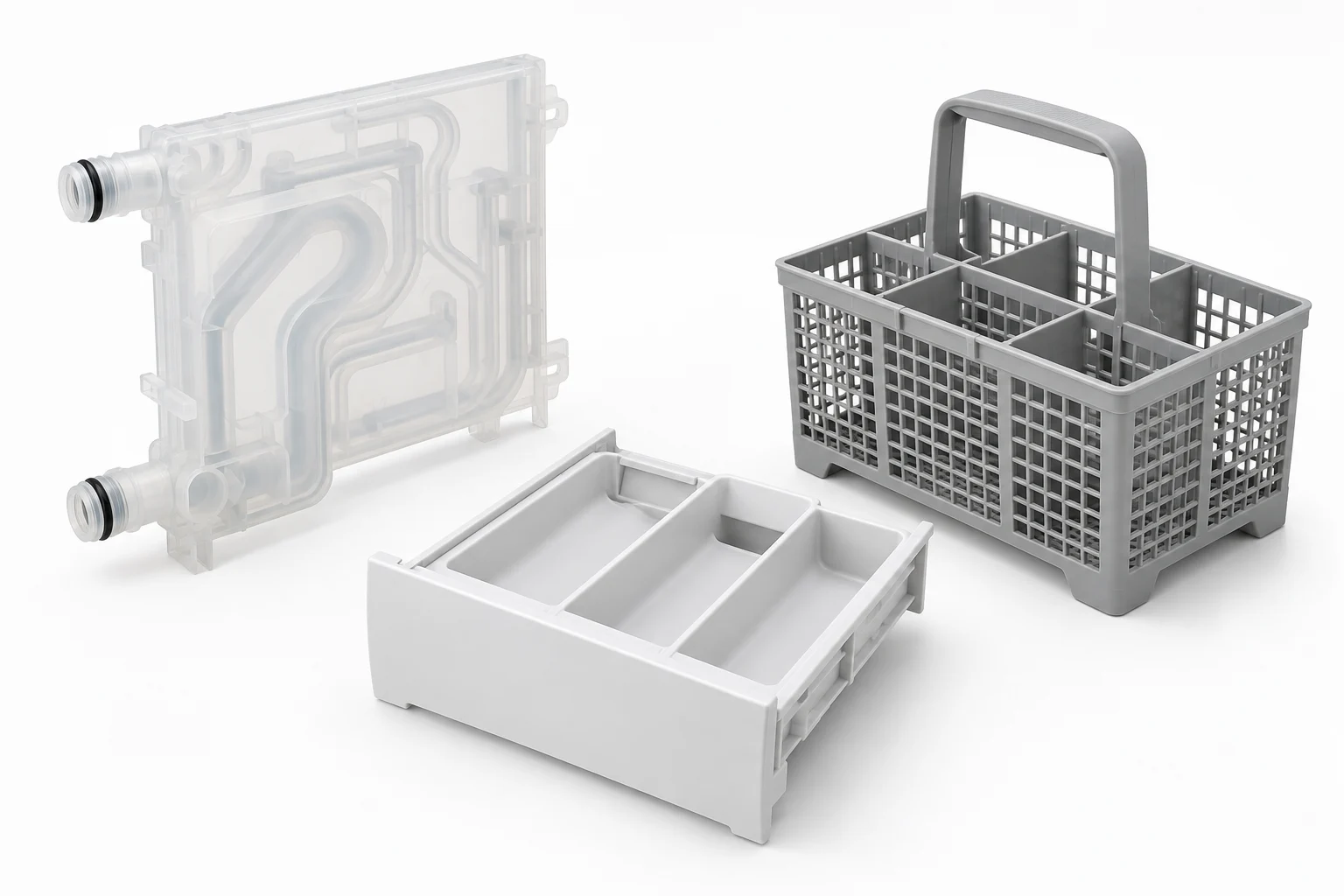

Illustrative appliance components showing water channels, divided detergent compartments and an open drainage basket
Water inlet body · detergent drawer · cutlery basket
04 / Home appliances

Home appliance components

Water channels, divided drawers and open baskets solve very different problems. The design starts with how water, cleaning agents and people interact with the part.

Flow pathsCompartment designHandling & cleaning

Engineering focus

  • Describe temperature cycles and contact with water or detergents.
  • Review drainage, handling points and access for cleaning.
  • Define how the molded components join the complete appliance assembly.
Discuss a similar application

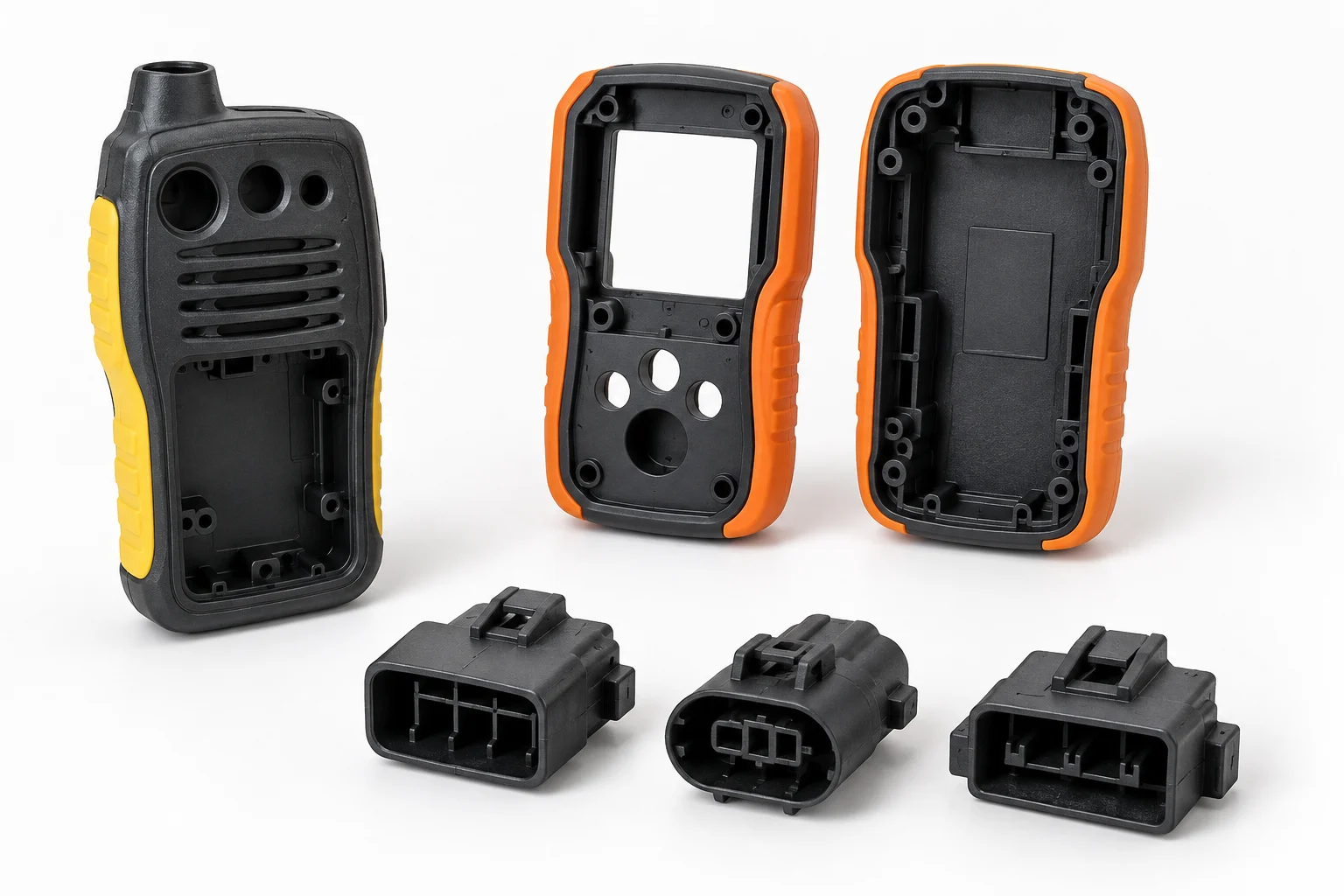

Illustrative handheld device housings, separate enclosure shells and small connector housings
Handheld housings · two-material shells · connectors
05 / Electronics & handheld devices

Electronics & handheld housings

A housing has to make room for the electronics and the person using them. Button openings, grip areas and connector positions shape the finished device.

Enclosure fitGrip interfacesConnector layout

Engineering focus

  • Share the board outline, connector positions and assembly sequence.
  • Define screw, snap-fit and two-material interfaces where required.
  • Specify any impact, ingress or electrical requirements; these are not implied by the pictured form.
Discuss a similar application

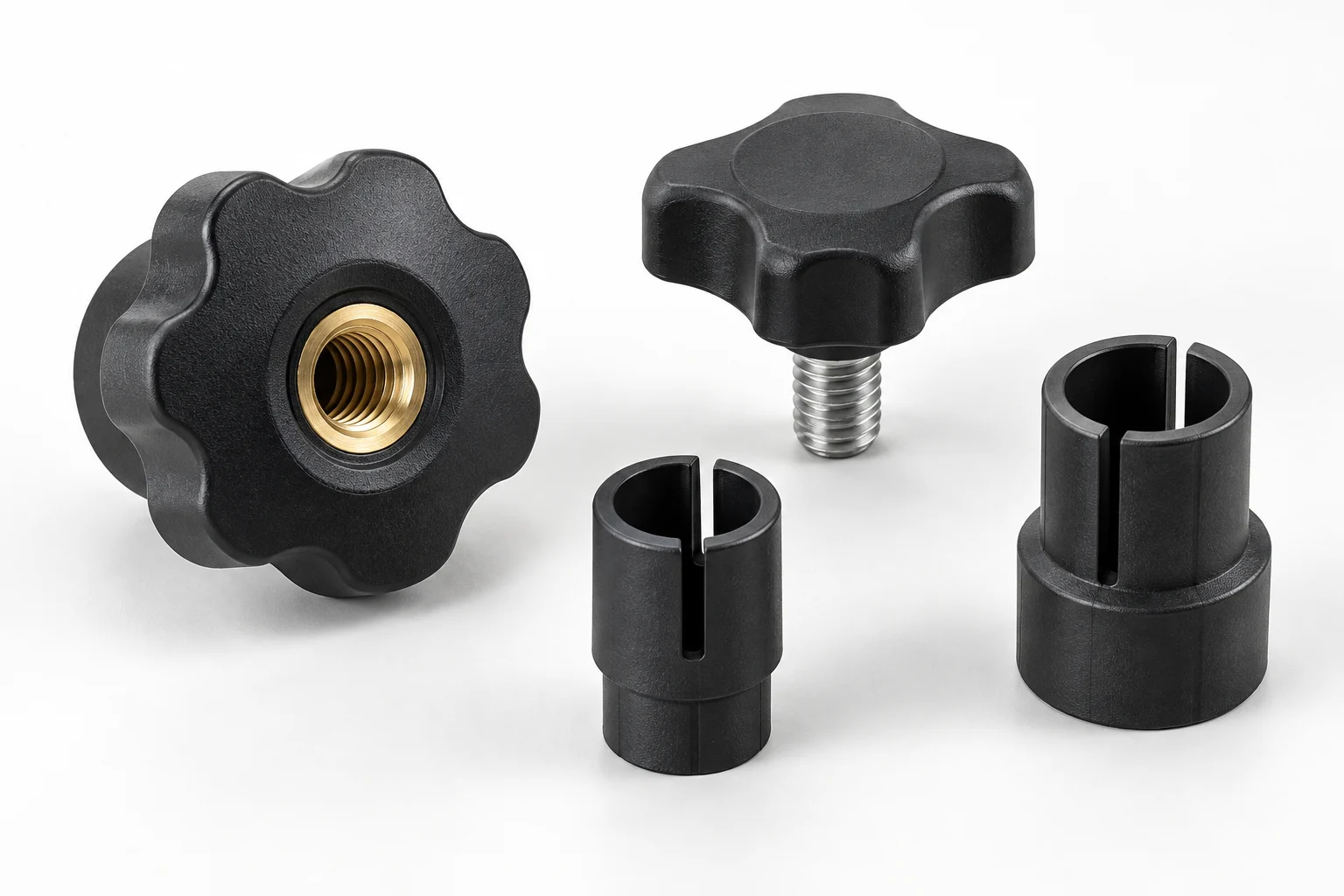

Illustrative adjustment knob with brass insert, plastic-head thumb screw and slotted connector sleeves
Insert-mounted knob · thumb screw · connector sleeves
06 / Industrial equipment · Fastening

Industrial adjustment & fastening

Knobs, thumb screws and adjustable sleeves make a system easier to set, hold and service. Metal interfaces and grip geometry do much of the work.

Threaded interfacesManual adjustmentService access

Engineering focus

  • Identify mating threads, engagement length and the direction of applied load.
  • Define grip clearance and the frequency of adjustment.
  • Review insert retention, assembly method and material exposure together.
Discuss a similar application

Engineering lens

Six application questions

You do not need every answer before contacting SRRP. These are the conditions our team will help make visible before tooling and approval decisions are locked.

01

What must the part do?

Protect, locate, support, fasten, carry or complete an interface.

02

What touches it?

Mating geometry, fasteners, fluids, surfaces and operators.

03

What acts on it?

Load, impact, vibration, wear, temperature and exposure.

04

How is it assembled?

Orientation, access, clips, inserts, routing and poka-yoke.

05

What defines approval?

Fit, appearance, critical dimensions and functional evidence.

06

How will it be supplied?

Demand rhythm, packing, labeling and replacement planning.

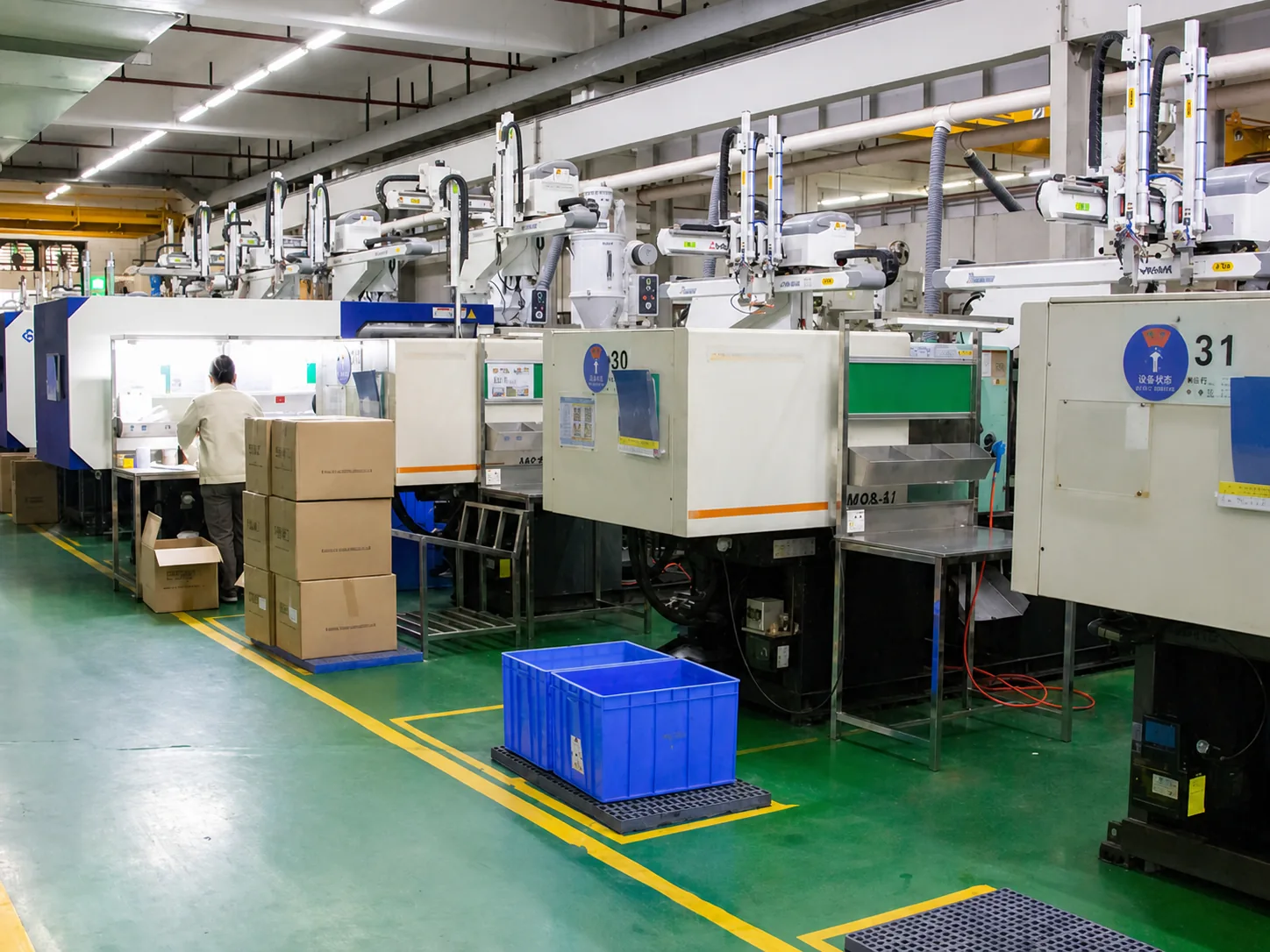

Injection molding line with take-out robots and organized part handling
Injection molding line Interfaces and service conditions shape the route.

Program pathway

Match the part to its environment

The path adapts to the project, but the decision gates stay visible from requirement review through repeat supply.

01Context

Map the application

Function, interfaces, conditions, quantity and delivery need.

02Direction

Align material + route

Geometry and service requirements translated into options.

03Engineering

Review DFM + risk

Critical features, moldability and open questions made visible.

04Approval

Tool, trial + inspect

First-off condition checked against agreed requirements.

05Supply

Repeat the condition

Inspection, packing and delivery tied to the approved part.

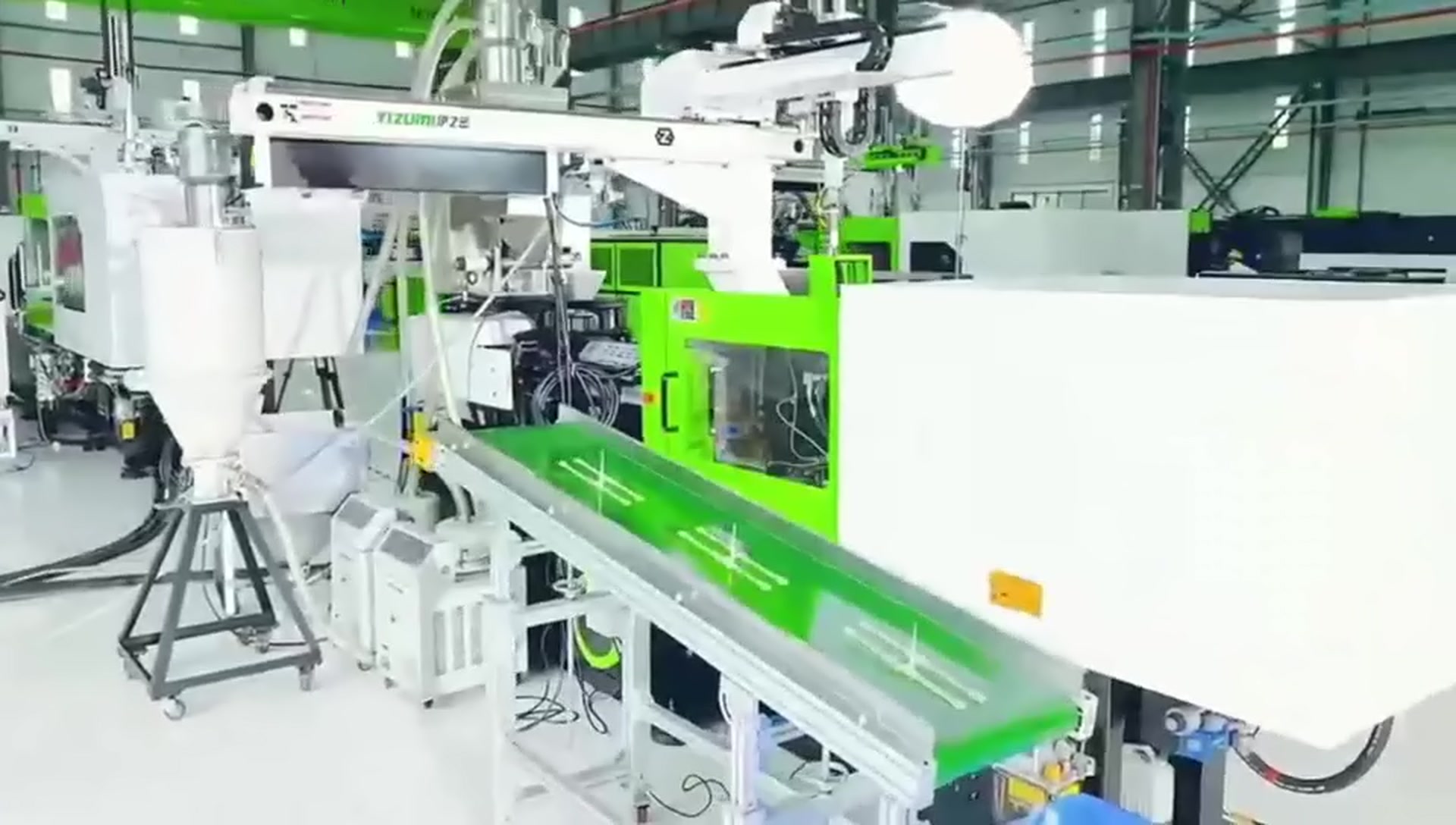

Customer-supplied company-film still showing an automated injection line
Customer-supplied authorized-partner media Equipment and production site confirmed per project

Start with what you have

Start with what you know

A drawing, sample, installed-part photo or clear application description can start the conversation. Add what is known and let the open questions stay visible.

01

Part evidenceDrawing, 3D file, sample or photographs.

02

Working contextFunction, environment and mating parts.

03

Commercial contextInitial need, annual demand and timing.

04

Approval contextWhat must be measured, fitted or demonstrated.

Prepare a stronger RFQ brief

Your application

Show us the application

Share the available drawing, sample or application context. SRRP will help turn it into a focused production conversation.
